Octopus Duo 3-in-1 Roller & Chuck Laser Rotary Attachment

Octopus Duo 3-in-1 Roller & Chuck Laser Rotary Attachment

$599.00 USD
$599.00 USD
Sale Sold out
View full details

Octopus-Simplify Your Engraving Process

OctopusDuo is the first Multifunctional Laser Rotary Attachment solution under the Octopus brand by Pomelo Laser. Designed for precisely engraving cylindrical & irregularly shaped Products. It ensures precision with each spin, generates excellent results on challenging surfaces &
complicated curves. Integrates with almost all laser systems.

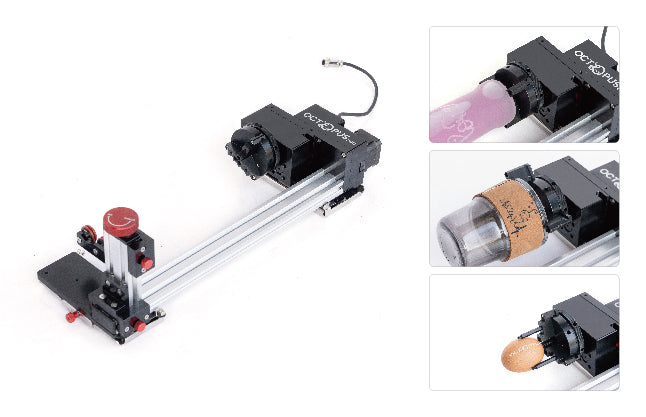

Adjusted Diameter

The OctopusDuo rotary chuck supports engraving on outer diameters from 2mm to 100mm (clamping from the outside) and inner diameters from 13mm to 100mm (expanding from the inside). It can accommodate spheres ranging from 20mm to 120mm and extended probe diameters from 2mm to 50mm. No matter the complexity of your cylindrical objects, OctopusDuo meets all your engraving needs.

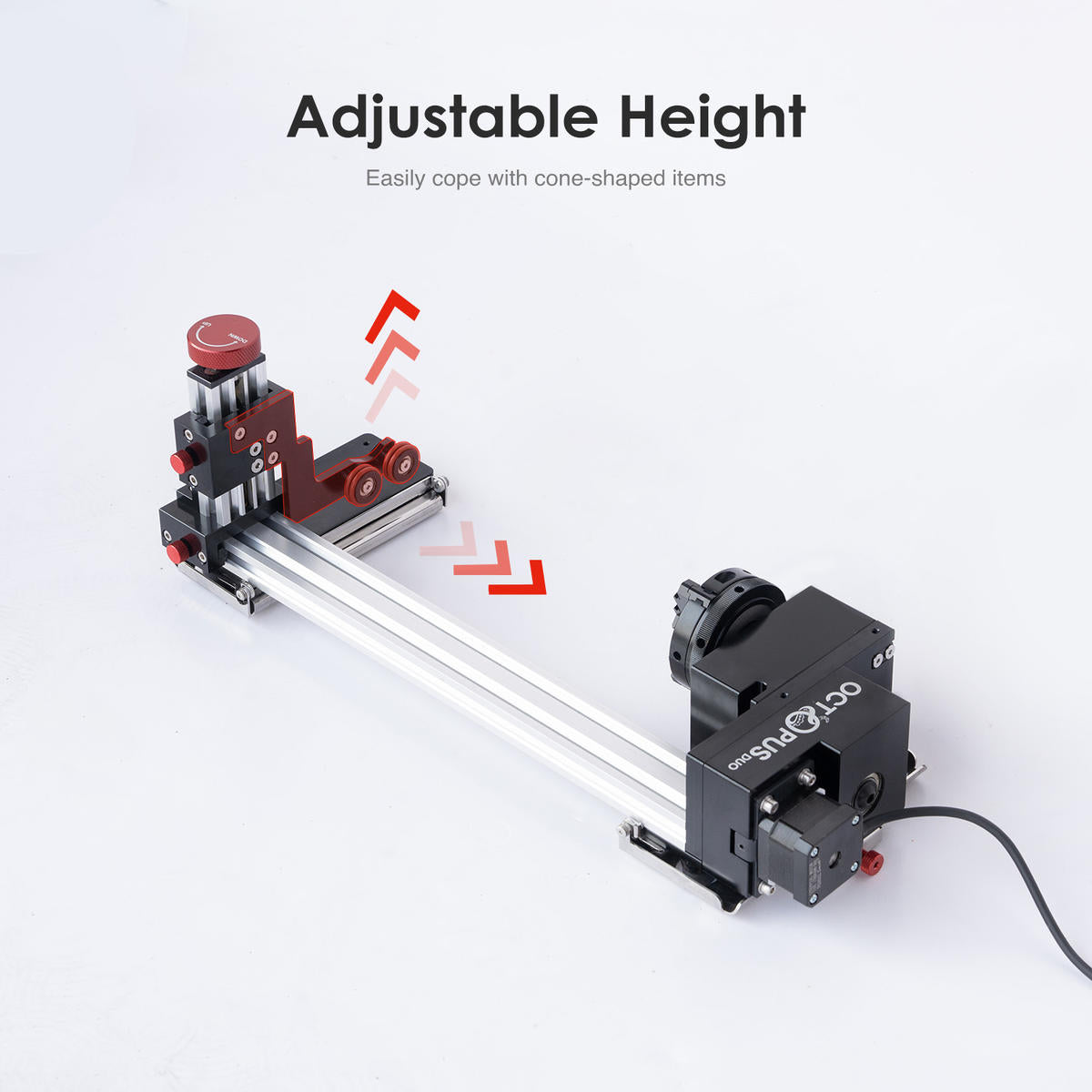

Adjustable Stable Design

The rotary turret design ensures ultra-high precision and stability, even at engraving speeds of 400mm/s. It supports vertical height adjustments for various cylindrical and irregular objects such as beverage cans, baseballs, wine glasses, and bottles, meeting both 180° and 360° rotary engraving needs.

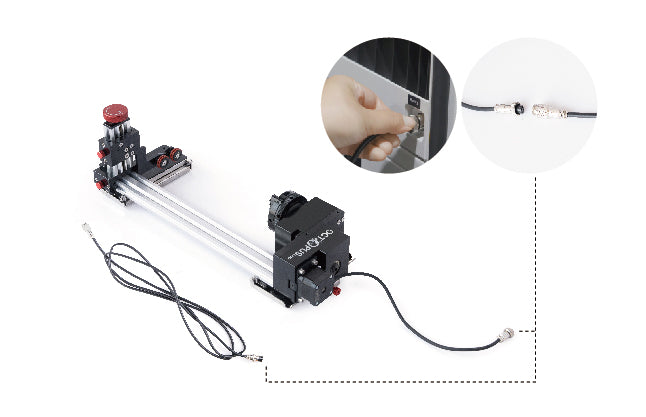

Plug-and-Play Compatibility

No installation required, easy to use, powered and controlled directly by the laser engraver.

Responsive Table
Features Specification
Chuck Module Maximum Diameter: 100mm, Minimum Diameter: 2mm
Roller Module Maximum Diameter: 100mm, Maximum Length: 565mm
Roller Module Maximum Object Length 150mm (including objects with handles like mugs)
Recommended Object Diameter Difference Up to 50mm (for roller module)
Tailstock Adjustable to support conical objects
Clamping Jaws Quick-change design with aluminum alloy material, preventing object slippage

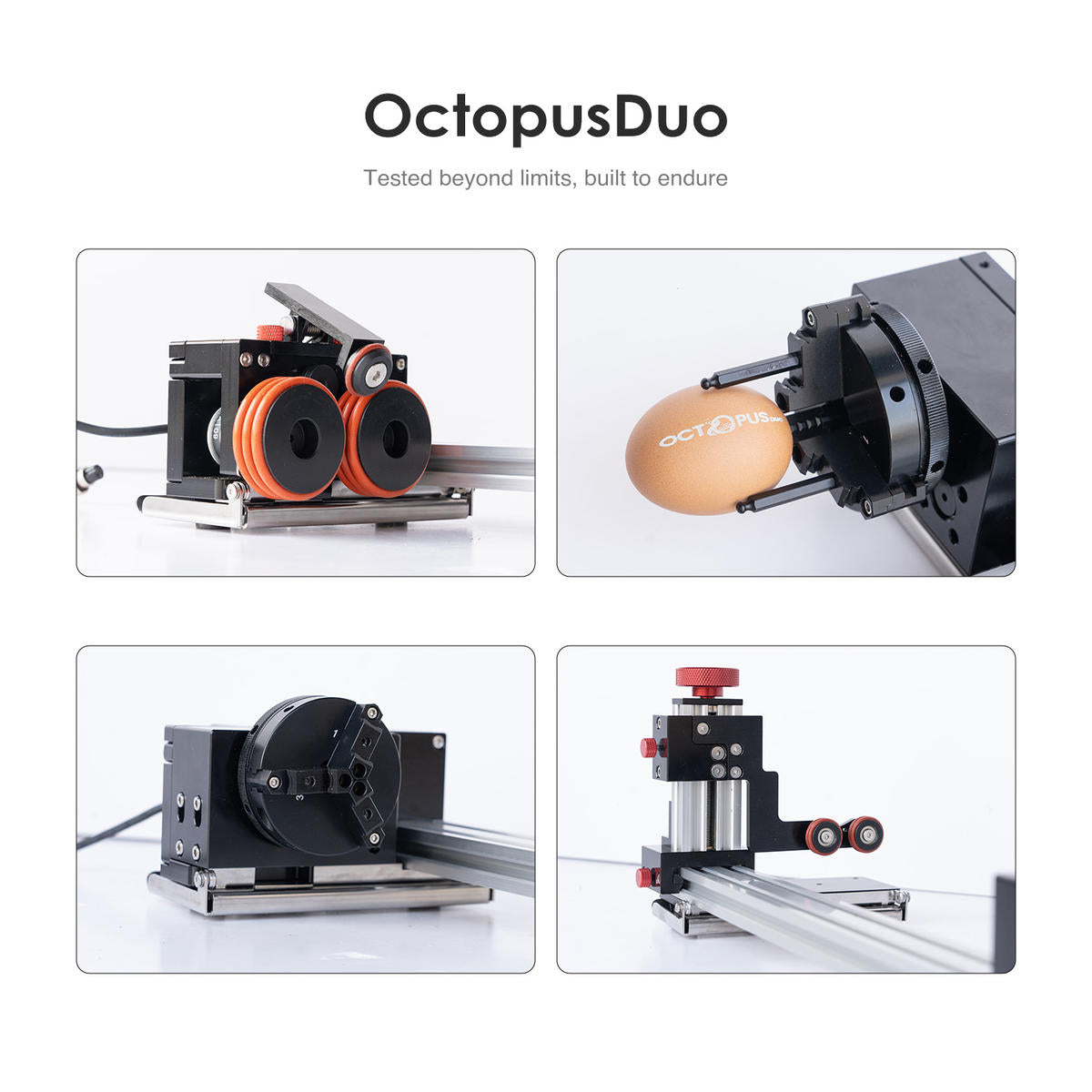

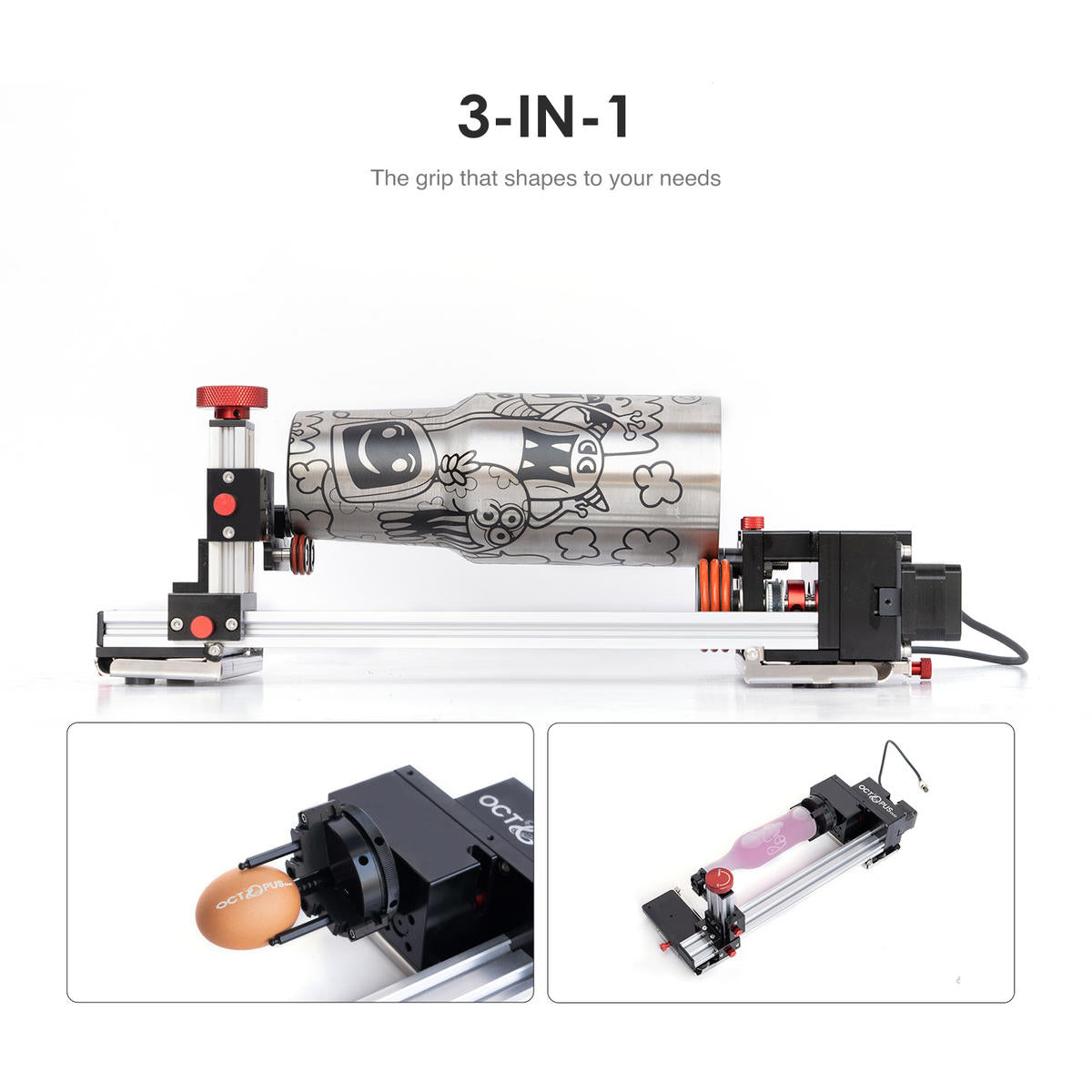

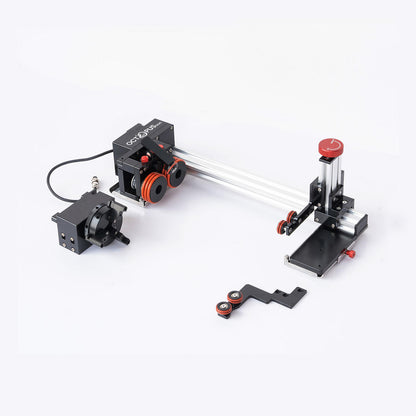

Module Switching Easy switching between chuck and roller modules for different object shapes

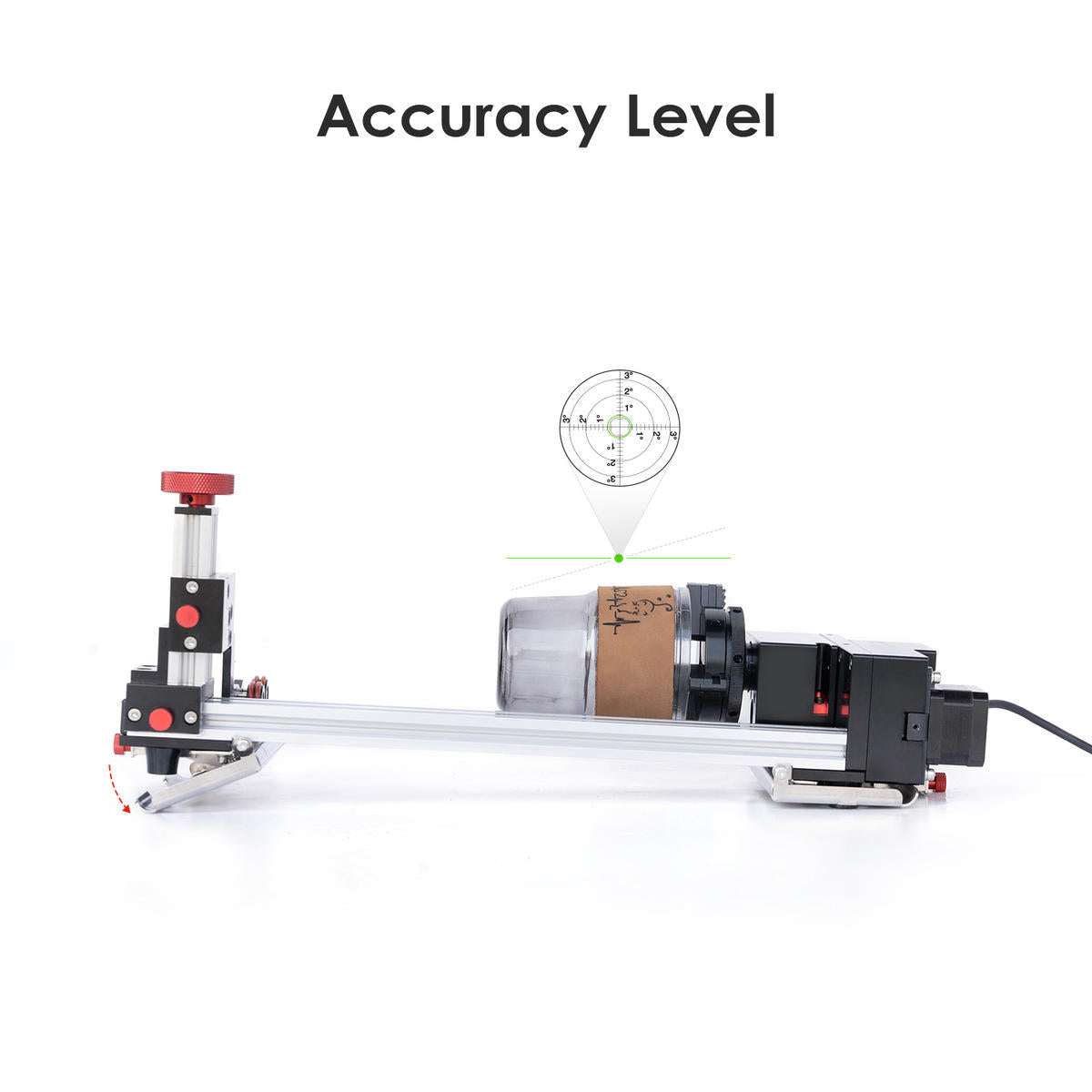

Precision Minimizes vibration for stable, high-quality engraving and cutting

FAQ

What materials can be engraved with OctopusDuo Laser Rotary?

Suitable materials include glass, stainless steel, aluminum, plastic, wood, and ceramic.

How do I connect a rotary attachment to my laser machine?

Plug the rotary attachment into the designated rotary port on the laser machine.

Enable rotary mode in the software (LightBurn or RDWorks).

Adjust settings like object diameter and steps per rotation to match the workpiece.

Can I engrave coated tumblers or metal cups with a CO₂ laser rotary?


CO₂ lasers cannot mark bare metal directly but can engrave on coated or painted surfaces (e.g., powder-coated tumblers).

Will the rotary damage my tumbler or glassware during engraving?


No, as long as the object is securely fixed and settings are properly adjusted, there’s minimal risk. Always test on a sample when possible.

Is the rotary attachment compatible with all CO₂ laser machines?


Not always. Compatibility depends on the machine model, bed size, and control board. Please check your machine specifications or contact us before purchasing.
