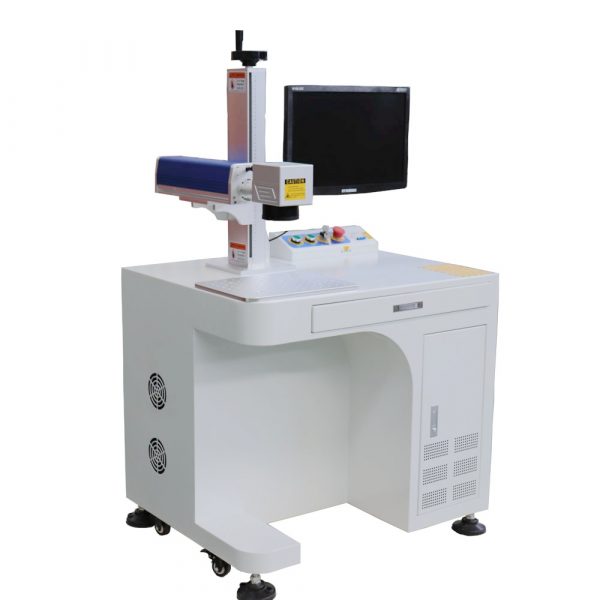

CABINET Fiber Laser Marking Machine with Air Cooling – 20W/30W/50W/100W/200w, JPT Laser Source
CABINET Fiber Laser Marking Machine with Air Cooling – 20W/30W/50W/100W/200w, JPT Laser Source
Regular price
$2,257.00 USD
Regular price
Sale price
$2,257.00 USD
Unit price
per
Couldn't load pickup availability
Specification:
| Power | 20W/30W/50W/100W |
| Optional Laser Source | Raycus/MAX/JPT/BFL |
| Laser Wavelength | 1064nm |
| Laser Type | Fiber type |
| Laser Beam quality | M2:1.5 |
| Repeat Frequency | 20KHz-80KHz |
| Repeat Positioning Accuracy | 0.002mm |
| Min linear Width | 0.01mm |
| Marking Depth | 0.01-2mm |
| Marking Speed | 4000-7000mm/s |
| Standard Marking Area | 100*100mm--300*300mm |
| Rated Power | Less 500W |
| Operating Voltage | 110V/220V/50Hz/15A |
| Operating Software | EzCAD |
| Support File Format | AI, PLT, DXF, BMP, DST, DWG, LAS, DXP, JPG |
| Working Temperature | 5-45℃ |
| Cooling | Air Cooling |
| Outsize | 800*650*1500mm |
| Weight | 120kg |
Configuration:
| Galvanometer | SINO-GALVO Fiber Galvo RC1001 |
| Control System | JCZ Control board/EzCAD 2.7.6 |
| F-theta lens | 175mm*175mm |
| Computer | i3 4G-128GB 1080P |
| Cabinet Area | 800*650mm |
