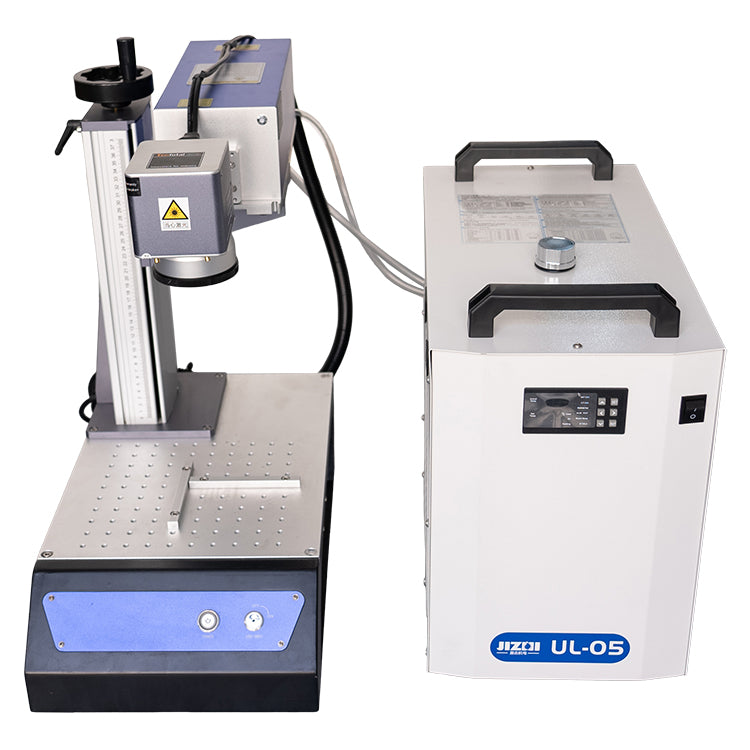

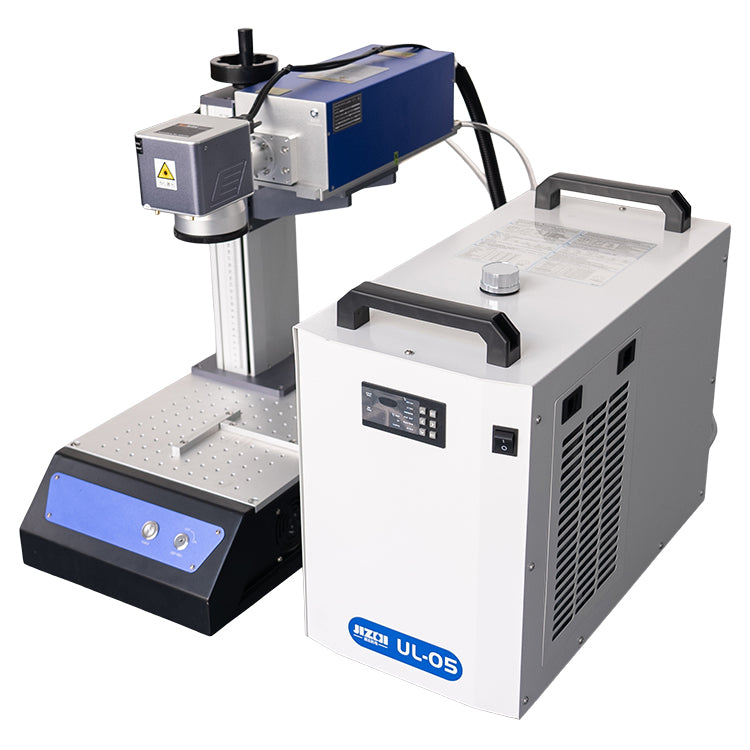

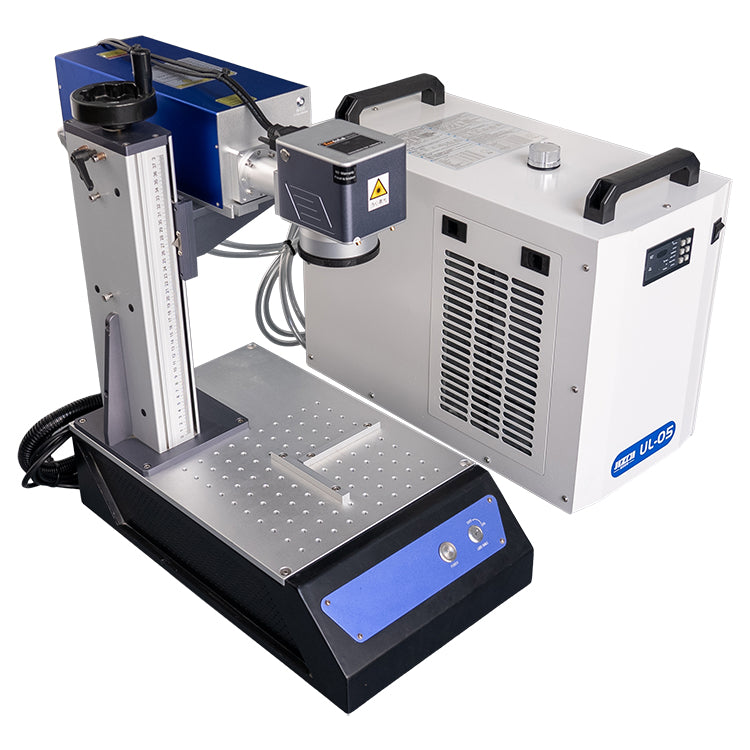

DESKTOP UV Marking Machine with Water Cooling - 3W 5W 10W, INNO Laser Source
DESKTOP UV Marking Machine with Water Cooling - 3W 5W 10W, INNO Laser Source
Regular price
$2,404.00 USD
Regular price
Sale price
$2,404.00 USD
Unit price
per
Couldn't load pickup availability
Specification:
| Power | 3W/5W/10W/15W |
| Optional Laser Source | INNO/GAINLASER/MAIMAN |
| Laser Wavelength | 355nm |
| Laser Type | UV type |
| Laser Beam quality | M2:1.5 |
| Repeat Frequency | 20KHz-80KHz |
| Repeat Positioning Accuracy | 0.002mm |
| Min linear Width | 0.01mm |
| Marking Depth | 0.01-2mm |
| Marking Speed | 4000-7000mm/s |
| Standard Marking Area | 100*100mm--300*300mm |
| Rated Power | Less 500W |
| Operating Voltage | 110V/220V/50Hz/15A |
| Operating Software | EzCAD |
| Support File Format | AI, PLT, DXF, BMP, DST, DWG, LAS, DXP, JPG |
| Working Temperature | 5-45℃ |
| Cooling | Water Cooling |
| Outsize | 400*600*700mm |
| Weight | 60kg |
Configuration:
| Galvanometer | SINO UV Galvo |
| Control System | JCZ EzCAD |
| F-theta lens | 175mm*175mm |
| Computer | I3 4G-128GB 1080P |
| Desktop Area | 350*450mm |
